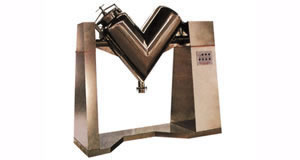

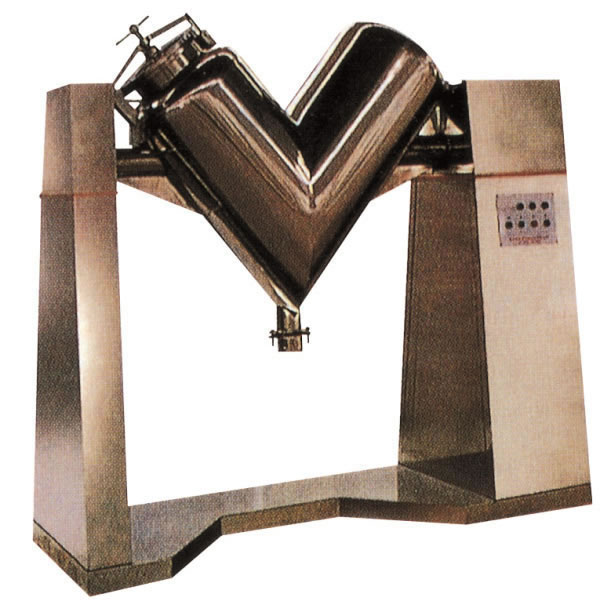

V Model Mixer Manufacturer and Supplier in China
Application and Features of the V Model Mixer
The V model mixer is used for mixing dry powder/granule material with fluidity.
It is made up of two asymmetric chambers. The material in chamber can make a vertical and horizontal motion to reach a uniform mixing effect over 99%.
The V model mixer operation is performed in a totally sealed condition, with no transmission device in the mixing chamber, thus there is no dead angle, which ensures clean operating conditions, and meets GMP requirements. It can also be equipped with a vacuum feeding system, if the customer desires.
| Model | Total Volume (m3) | Load Volume (L) | A | B | C | D | E | F | G | H | Rotate Speed (rpm) | Motor Power (kW) | Total Weight (kg) | Vacuum pump model |
| Length (mm) | Width (mm) | Height Of center (mm) | Inlet Dia (mm) | Outlet Dia (mm) | Outlet Height (mm) | Rotate Height (mm) | Rotate Dia (mm) | |||||||
| VH-0.3 | 0.3 | 120 | 2220 | 900 | 1470 | ￠ 300 | ￠ 100 | 750 | 2290 | ￠ 1540 | 15 | 1.5 | 350 | W2 |
| VH-0.5 | 0.5 | 200 | 2400 | 950 | 1510 | ￠ 300 | ￠ 150 | 750 | 2370 | ￠ 1620 | 15 | 1.5 | 550 | W2 or SK-1.5 |
| VH-1.0 | 1.0 | 400 | 2800 | 1000 | 1660 | ￠ 400 | ￠ 150 | 750 | 2580 | ￠ 2130 | 12 | 3.0 | 1000 | W3 or SK-3 |
| VH-1.5 | 1.5 | 600 | 3000 | 1100 | 1750 | ￠ 400 | ￠ 200 | 750 | 2580 | ￠ 2400 | 10 | 4.0 | 1100 | W3 or SK-3 |
| VH-2.0 | 2.0 | 800 | 3200 | 1200 | 2000 | ￠ 400 | ￠ 200 | 750 | 3350 | ￠ 2500 | 10 | 5.5 | 1500 | W3 or SK-3 |
| VH-2.5 | 2.5 | 1000 | 3400 | 1300 | 2140 | ￠ 400 | ￠ 200 | 750 | 3800 | ￠ 2880 | 8 | 7.5 | 1700 | W4 or SK-6 |
| VH-3.0 | 3.0 | 1200 | 3600 | 1400 | 2200 | ￠ 400 | ￠ 200 | 750 | 3850 | ￠ 3000 | 6 | 7.5 | 1800 | W5 or SK-9 |
Xianfeng Drying is a specialized V model mixer manufacturer in China. In addition, we provide a high speed mixer, centrifugal atomizing drying equipment, circle vibrate sieve, fluid bed granulator, and more.
