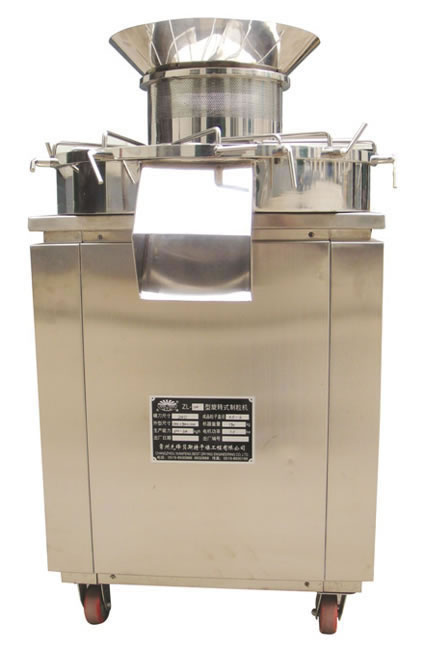

Rotary Granulating Machine

Rotary Granulating Machine

Rotary Granulating Machine Application

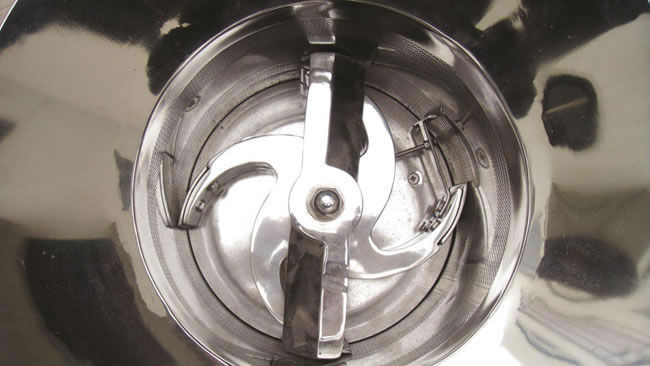

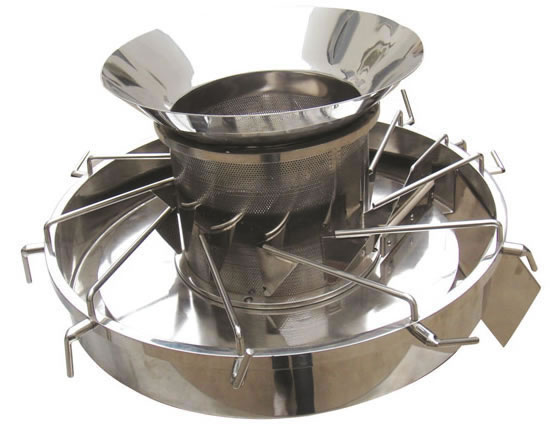

The rotary granulating machine is widely used in the pharmaceutical, foodstuff, and chemical industry, and is particularly popular for creating medical granules. It can also be used for very sticky materials. The soft material is forced through a sieve under the extrusion force of a grinding impeller, then the uniform length is achieved by the cutting force of an outside scraping impeller.

Features of the Rotary Granulating Machine
All parts of the rotary granulating machine which come in contact with product are made of highly polished stainless steel, so as to ensure the purity of the finished product. An automatic discharge avoids any granule damage caused by manual discharging, and it is very applicable for production line operation.

Technical Parameter of the Rotary Granulating Machine
Dia of sieve (mm) 250 300B 300D
Diameter of granule ¢ 2-2.2 ( by user) ¢ 1.2-3 ( by user) ¢ 0.5-6 ( by user)
Overall size (mm) 700x540x1300 880x640x1300 1300x800x1200
Power of motor (kW) 3 4 7.5
Weight(kg) 350 400 780
Production capacity(kg/h) 100-200 140-400 300-600

Typical customer
Singapore Super Coffeemix Manufacturing Ltd
Turkey Safa Tarim A.S
Pt.Ki-Antaka Rasa (Indonesia)
Vietnam Minhduong Food Co., Ltd

As a specialized rotary granulating machine manufacturer in China, we also provide chicken seasoning granulating drying machine, vacuum harrow drying machine, circle vibrate sieve, and high speed mixer, among others.
