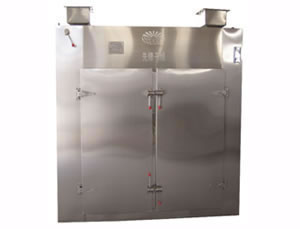

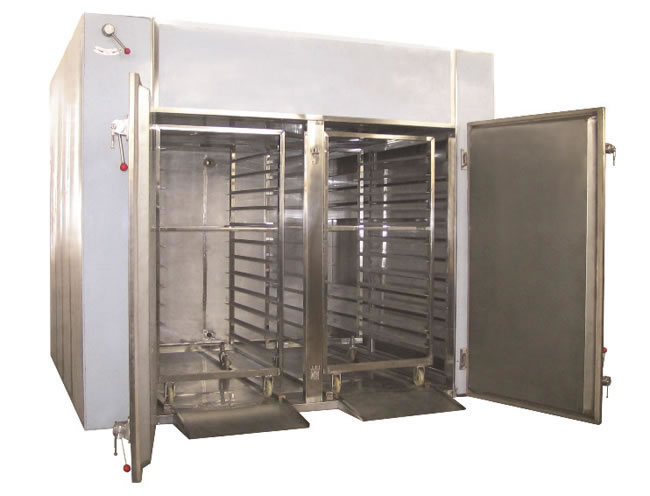

Hot Air Oven Drying Equipment

Hot Air Oven Drying Equipment

Scope of application
The Hot Air Oven Drying Equipment is suitable for drying dehydration of raw materials in the fields of pharmaceuticals, chemicals, foodstuff, subsidiary agricultural products, aquatic products, light industry and heavy industry. Some of the products it is used to produce include Chinese traditional medicine, herbal extracts, tablets, granules, powder, packing bottles, pigment, dehydrated vegetables, dried fruit and melon, plastic resin, electronic elements, and baking varnish.

Features of the Hot Air Oven Drying Equipment
1. Hot air is circulated inside the oven drying equipment to ensure a high drying efficiency and energy savings.
2. The dryer's enhanced ventilation and adjustable air distributor provide uniform drying. The heat sources which can be used are steam, electric, hot water, and more.
3. The hot air oven drying equipment has low noise and reliable operation, the temperature can be controlled automatically, and it conforms to GMP requirements.
4. With a wide field of applications, it can be used on many kinds of raw materials, making it a comprehensive dryer.

Main Technical Parameters of the Hot Air Oven Drying Equipment
No Model Field standard model Technical data Accessories Total weight (kg)
Evaporate area
(m2)
Efficient volume (m3) Drying capacity (kg/batch) Radiator area
(m2)
Steam consumption (kg/h) Electric heater power (kW) Fan volume
(m3/h)
Fan power
(kW)
Overall size W*D*H (mm) Equip Trolly (set) Equip Tray (pc) Temp Auto Control cabinet
1 CT-C-0 RXH-7-C 7.1 1.3 60 10 10 6 3450 0.45 1380*1200
*2000
1 24 Have 820
2 CT-C-1 RXH-14-
C
14.1 2.6 120 20 18 15 3450 0.45 2260*1200
*2000
2 48 Have 1580
3 CT-C-II RXH-27-C 28.3 4.9 240 40 36 30 6900 0.45*2 2260*2200
*2000
4 96 Have 1800
4 CT-C-IIA RXH-27-
C
28.3 4.9 240 40 36 30 6900 0.45*2 4280*1200
*2270
4 96 Have 1880
5 CT-C-III RXH-41-
C
42.4 7.4 360 80 60 45 10350 0.45*3 2260*3200
*2000
6 144 Have 2100
6 CT-C-IIIA RXH-41-
C
42.4 7.4 360 80 60 45 10350 0.45*3 3240*2200
*2000
6 144 Have 2210
7 CT-C-IV RXH-54-
C
56.5 10.3 480 120 80 60 13800 0.45*4 4280*2200
*2270
8 192 Have 2800
8 CT-Ⅰ RXH-14-
B
14.1 2.6 120 23 20 15 3450 1.1 2480*1200
*2375
2 48 None 1220
9 CT-Ⅱ RXH-27-
B
28.3 4.9 240 48 40 30 5230 1.5 2480*2200
*2438
4 96 None 1530
CT-Ⅲ RXH-41-
B
42.4 7.4 360 72 60 45 9800 2.2 3430*2200
*2620
6 144 None 2110
CT-Ⅳ RXH-54-
B
56.5 10.3 480 96 80 60 11800 3 4460*2200
*2620
8 192 None 2300

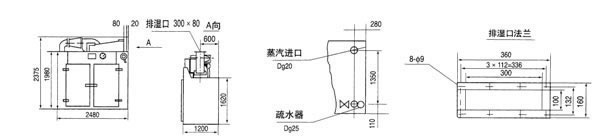

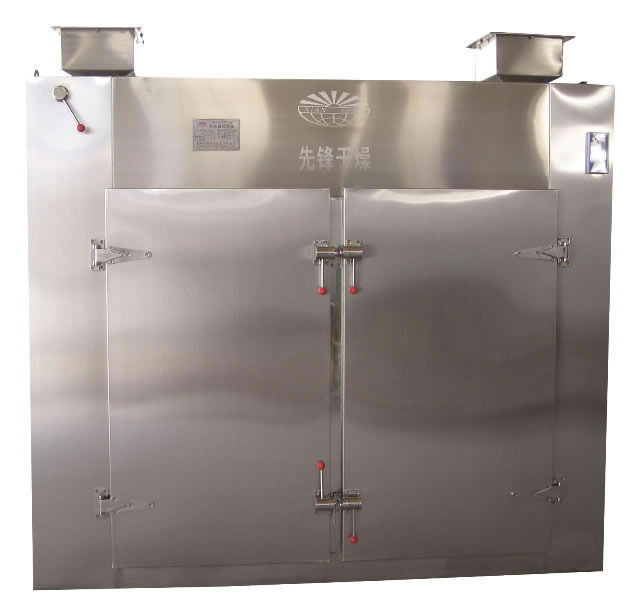

CT-Ⅰ Hot Air Oven Drying Equipment

Hot Air Oven Drying Equipment

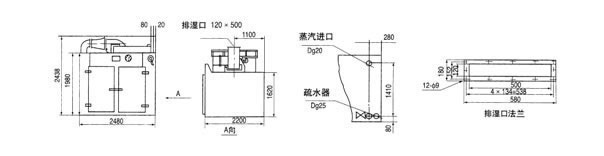

CT-Ⅱ Hot Air Oven Drying Equipment

Hot Air Oven Drying Equipment

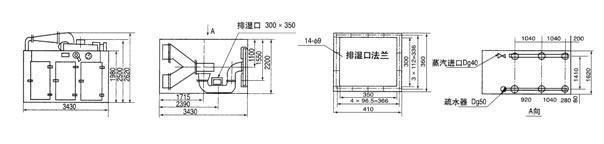

CT-Ⅲ Hot Air Oven Drying Equipment

Hot Air Oven Drying Equipment

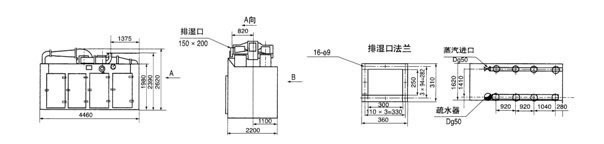

CT-Ⅳ Hot Air Oven Drying Equipment

Hot Air Oven Drying Equipment

Typical customers
Turkey Safa Tarim A.S
Thailand Food and Drug For Health Company Ltd
