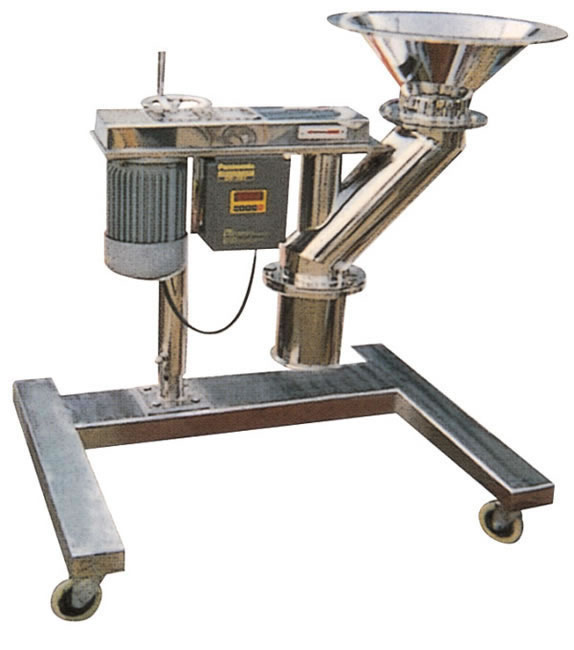

High Speed Granulator

High Speed Granulator

The high speed granulator offers less heat and little dust during operation.
The fixed screen is made of stainless steel, and the gap from grind knife to screen is adjustable.
It can also handle adhesive, colloidal, heat sensitive, and wet materials.

Main Applications and Features
The high speed granulator is suitable for crushing and processing granules in Chinese traditional medicine, Western medicine, and the foodstuff, chemical, pigments, and animal feed industries, among others.
A variety of shapes of granules can be created using different granulating processes.
All parts of the high speed granulator in contact with the product are made of stainless steel and are highly polished.
Other advantages of the granulation equipment are its easy assembly and disassembly, ease in cleaning, and it totally conforms to GMP requirements.

Technical Parameter of the High Speed Granulator
Specification 100 200 300
Stator diameter(mm) 100 200 300
State length(mm) 96 179 305
Capacity (kg/h) 20-150 100-1500 200-2500
Power(kW) 0.75 1.5 5.5
Speed(rpm) 0-1400 0-1400 0-1400

As an experienced, high speed granulator manufacturer in China, we not only supply granulation equipment, but also mixing equipment, drying equipment, sieving equipment, and grinding equipment.

Related Names
High Velocity Granulating Facility | High Rate Pellet Machine | Swift Prilling Unit | High Speed Pelletizing Device
