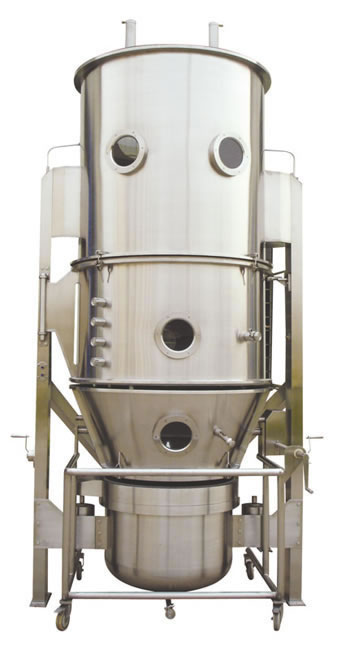

High Efficient Fluidizing Drying Equipment

High Efficient Fluidizing Drying Equipment

Scope of Application
The highly efficient fluidizing drying equipment is ideal for drying screw-extruded particles and granules made using different methods. To illustrate, it can be used for drying particles with varied sizes and powder raw material in fields such as pharmaceuticals, foodstuff, feed stuff, chemical industries, and more. Also, the drying equipment can be used for drying giantarum and polyacrylamide materials which may have size variation after drying.

Principle of Working
Air is purified and heated, then it is introduced from the bottom of an induced-draft fan and passed through the screen plate of raw material. In the working chamber, materials form into fluidized state after stirring and negative pressure effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.

Features of High Efficient Fluidizing Drying Equipment
1. The structure of fluidization bed is round so as to avoid a dead angle.
2. Inside the hopper there is a stirrer to avoid sticking together of raw material.
3. The granule is discharged through the method of turning over, which is very convenient. The discharging system can also be designed according to requirements.
4. It is operated under the conditions of negative pressure and sealed. The air is filtered, so it is simple in operation, convenient and clean. It is also in conformity with the requirements of GMP.
5. The drying speed is quick and the temperature is uniform. In general, the drying time is 15-45 minutes for each batch.

Technical Parameters of High Efficient Fluidizing Drying Equipment
Item Unit Type
60 100 120 150 200 300 500
Production capacity Kg/batch 30-60 60-100 80-120 100-150 120-200 200-300 300-500
Container of raw material Diameter mm 1000 1000 1200 1200 1400 1600 1800
volume m3 /h 2361 3488 4000 4901 6032 7800 10800
Fan Volume L 220 330 420 500 670 1000 1500
Pressure mmH2O 594 533 533 679 787 950 950
Power kW 7.5 11 15 18.5 22 30 45
Stirring power kW 0.55 0.55 0.55 0.55 0.75 0.75 1.1
Stirring speed r.p.m 11
Consumption of steam Kg/h 141 170 210 240 282 366 451
Time of operation Min 15-45 based on raw material characteristic
Height of main machine Square mm 2750 2850 2850 2900 3100 3300 3650
Round mm 2700 2990 2900 2900 3100 3600 3850

We at Xianfeng Drying are a Chinese manufacturer and supplier specializing in the production of high efficiency fluidizing drying equipment in China. We also offer airstream drying equipment, belt drying equipment, a rotary granulating machine, and more.
